Termékadatok

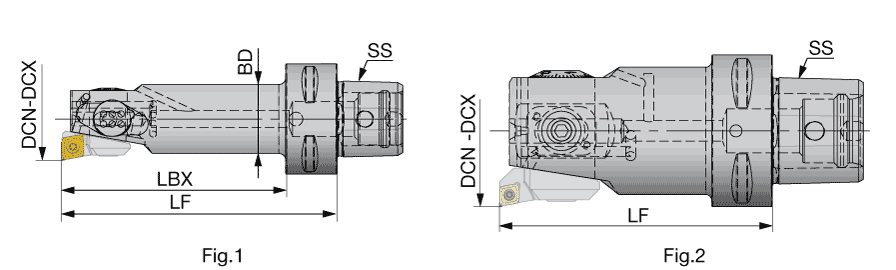

| Alkalmazás | | Face contact interface | SwissBore tools | | Connection Diameter Machine Side (DCONMS) | 32 mm |
| Cutting Diameter Minimum (DCN) | 30.9 mm | Mérés típusa | Metric |
| Cutting Diameter Maximum (DCX) | 47.1 mm | Test anyaga | Steel |
| Functional Length (LF) | 90 mm | Egység | M |
| Body Diameter (BD) | 25 mm |
Termékjellemzők

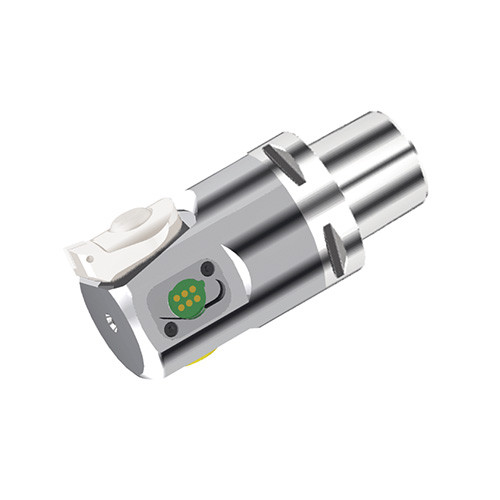

| Termékcsalád | Digital Fine boring heads for dia 23.9 - 153.1 mm | COO | SWITZERLAND |
| Megjegyzések | DCN and DCX vary depending on the assembly of boring head, boring bar and insert holder. For DCN and DCX, click on "More Info". Insert holders should be ordered individualy. Applicable for 7 MPa pressure coolant. |
Shipping Info
Csomag súlya
0.3920
Related Documentation

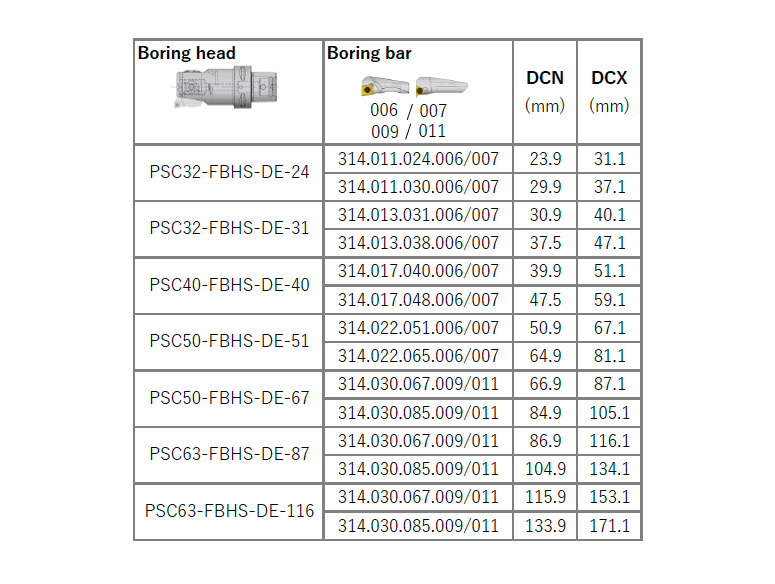

DCN and DCX vary depending on the assembly of boring head, boring bar and insert holder.
