Termékadatok

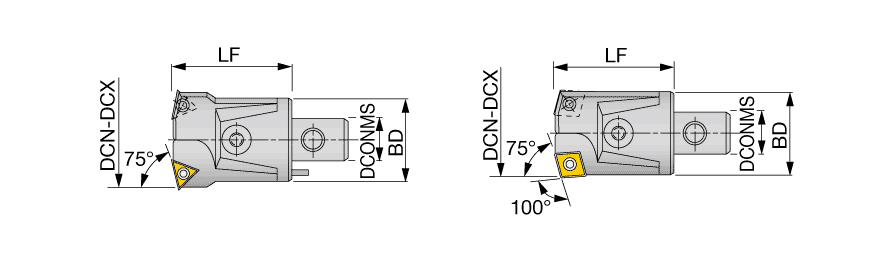

| Alkalmazás | | PINZBOHR tools | | Connection Diameter Machine Side (DCONMS) | 24 mm |
| Cutting Diameter Minimum (DCN) | 49 mm | Mérés típusa | Metric |
| Cutting Diameter Maximum (DCX) | 65 mm | Connection Diameter Workpiece Side (DCONWS) | 24 mm |
| Functional Length (LF) | 56 mm | Test anyaga | Steel |
| Body Diameter (BD) | 42 mm | Egység | M |
Termékjellemzők

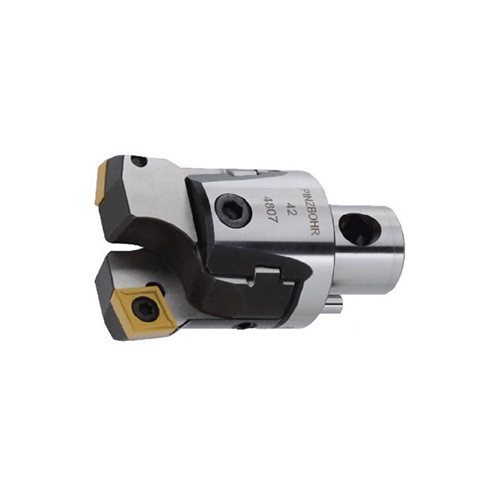

| Termékcsalád | Roughing-Head with 75deg approach for dia 24 - 82mm | COO | SPAIN |
| Megjegyzések | 100 deg corner of CC**0602, CC**09T3 and CN**1204 are used. PINZBOHR Boring System is a product of MYFHE,S.A. |
Shipping Info
Csomag súlya
0.5450
