Termékadatok

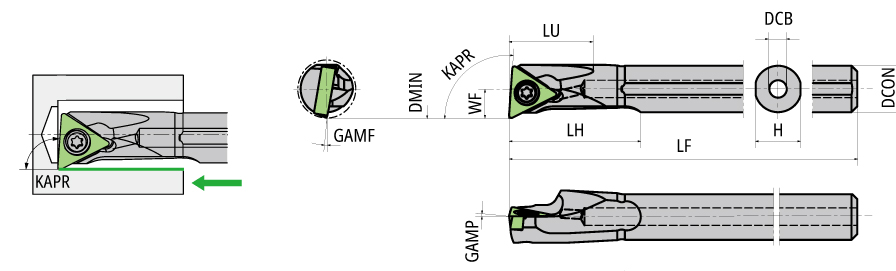

| Connection Diameter Machine Side (DCONMS) | 20 mm | Alkalmazás | | Boring | |
| Functional Length (LF) | 180 mm | Rake Angle Axial (GAMP) | 5.0 deg |
| Head Length (LH) | 46 mm | Rake Angle Radial (GAMF) | 3.0 deg |
| Shank Height (H) | 19.4 mm | Test anyaga | Steel |
| Functional Width (WF) | 11 mm | Mérés típusa | Metric |
| Minimum Bore Diameter (DMIN) | 22 mm | Egység | M |
Termékjellemzők
| COO | Japan | BrandName | NTK Cutting Tools |
| Családnév | S-STUP-OH Mogul Bar |
Shipping Info
Csomag súlya
0.4437
Név

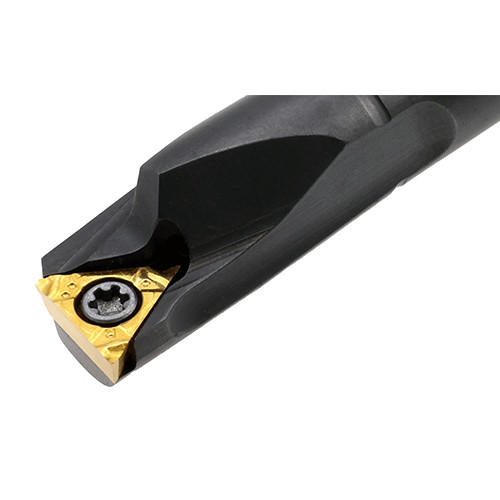

Indexable Internal Turning Tools
Családnév
S-STUP-OH Mogul Bar
BrandName
NTK Cutting Tools
