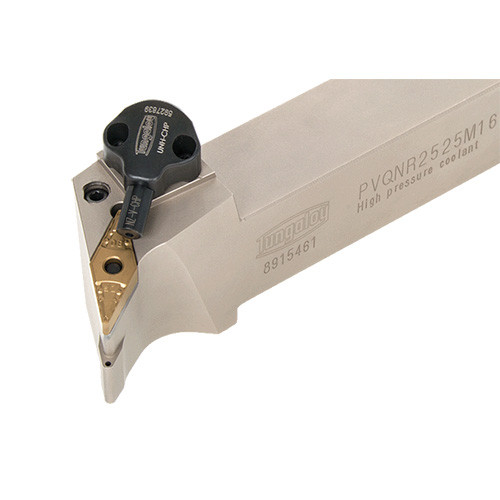

PVQNR2525M16-CHP
Lever lock type toolholder with 117.5 deg approach angle, for negative 35 deg or 25 deg rhombic inserts, with channels for high pressure coolant
Price: Log in For Price
Termékadatok

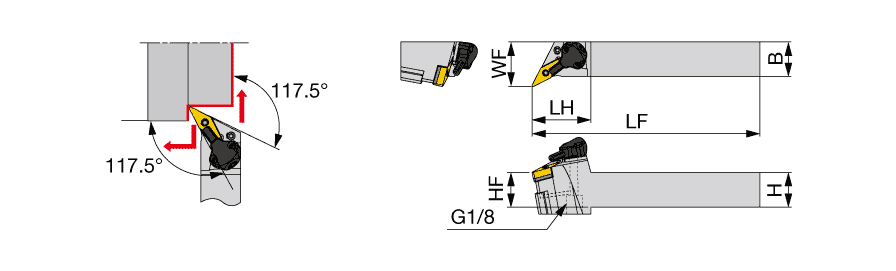

| Shank Height (H) | 25 mm | Cutting Direction (HAND) | Right Hand |
| Shank Width (B) | 25 mm | Master Insert Identification (MIID) | VNMG160408 |
| Overall Length (OAL) | 150 mm | Alkalmazás | | For 35deg Rhombic insert | |
| Functional Length (LF) | 150 mm | Test anyaga | Steel |
| Head Length (LH) | 42.5 mm | Mérés típusa | Metric |
| Functional Width (WF) | 32 mm | Egység | M |
Termékjellemzők
| Termékcsalád | Lever lock type toolholder with 117.5 deg approach angle, for negative 35 deg or 25 deg rhombic inserts, with channels for high pressure coolant | Családnév | PVQNR/L-CHP |
| Megjegyzések | Torque:Recommended torque (Nm) for clamping. | BrandName | Tungaloy |
| COO | JAPAN |
Shipping Info
Csomag súlya
0.8040
Név
General Indexable Turning Tools
Családnév
PVQNR/L-CHP
BrandName
Tungaloy
