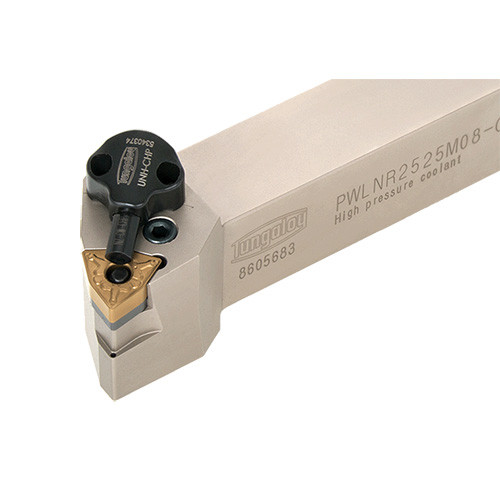

PWLNL164-CHP
Lever lock type toolholder with 95 deg approach angle, for negative 80 deg trigon inserts, with channels for high pressure coolant
Price: Log in For Price
Termékadatok

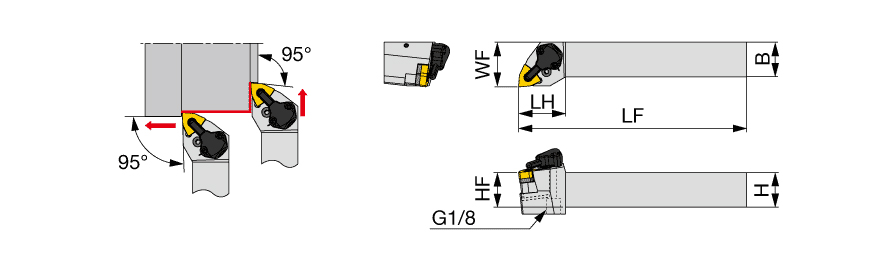

| Shank Height (H) | 1″ | Cutting Direction (HAND) | Left Hand |
| Shank Width (B) | 1″ | Master Insert Identification (MIID) | WNMG432 |
| Overall Length (OAL) | 6″ | Alkalmazás | | For 80deg Trigon insert | |
| Functional Length (LF) | 6″ | Test anyaga | Steel |
| Head Length (LH) | 1.344″ | Mérés típusa | Inch |
| Functional Width (WF) | 1-1/4″ | Egység | I |
Termékjellemzők
| Termékcsalád | Lever lock type toolholder with 95 deg approach angle, for negative 80 deg trigon inserts, with channels for high pressure coolant | Családnév | PWLNR/L-CHP |
| Megjegyzések | Torque:Recommended torque (Nm) for clamping. | BrandName | Tungaloy |
| COO | JAPAN |
Shipping Info
Csomag súlya
1.9048
Név
General Indexable Turning Tools
Családnév
PWLNR/L-CHP
BrandName
Tungaloy
