QC12-JSCL2CR09-CHP

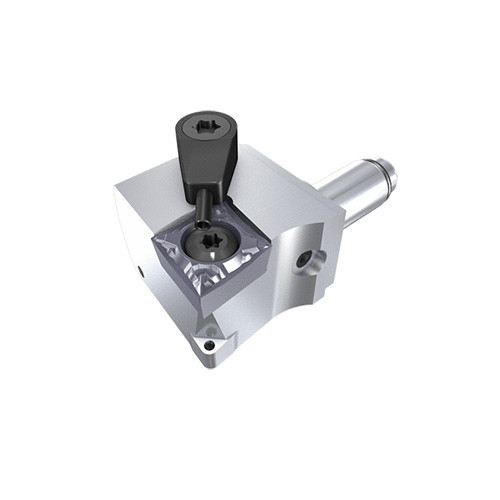

Modular head without offset for ISO 80 deg rhombic inserts, with high pressure coolant capability
Price: Log in For Price
Termékadatok

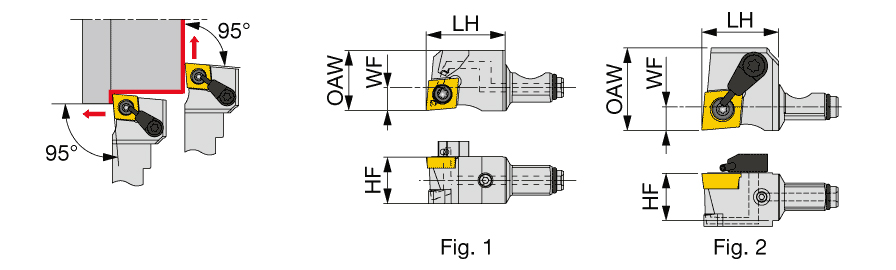

| Shank Height (H) | 12 mm | Cutting Direction (HAND) | Right Hand |
| Shank Width (B) | 12 mm | Master Insert Identification (MIID) | CCGT09T302 |
| Overall Length (OAL) | 35 mm | Alkalmazás | | For Miniature machining | |
| Functional Length (LF) | 19.9 mm | Test anyaga | Steel |
| Head Length (LH) | 19.5 mm | Mérés típusa | Metric |
| Functional Width (WF) | 6 mm | Egység | M |
Termékjellemzők
| Termékcsalád | Modular head without offset for ISO 80 deg rhombic inserts, with high pressure coolant capability | Családnév | QC-JSCL2CR-CHP |
| Megjegyzések | Through coolant head. For using internal coolant, please select both a through coolant head and a through coolant shank. | BrandName | Tungaloy |
| COO | JAPAN |
Shipping Info
Csomag súlya
0.0000
Név
General Indexable Turning Tools
Családnév
QC-JSCL2CR-CHP
BrandName
Tungaloy
