ETFR16-4T25-045055-CHP
Toolholder for face grooving & turning, with channels for high pressure coolant.
Price: Log in For Price
Termékadatok

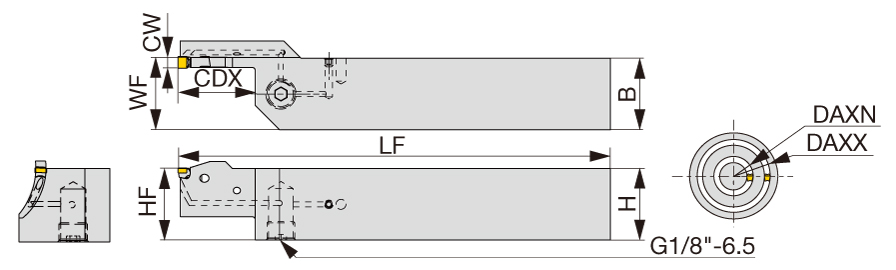

| Shank Width (B) | 1″ | Minimum Bore Diameter (DMIN) | 1.772″ |
| Shank Height (H) | 1″ | Tool Type | TOOLHOLDERS - FOR FACE GROOVING |
| Cutting Width (CW) | 0.157″ | Test anyaga | Steel |
| Cutting Direction (HAND) | Right Hand | Functional Width (WF) | 1.02″ |
| Overall Length (OAL) | 6″ | Mérés típusa | Inch |
| Work Piece Parting Diameter Maximum (CUTDIA) | 2.165″ | Egység | I |
| Alkalmazás | | Face grooving | |
Termékjellemzők
| Termékcsalád | Toolholder for face grooving & turning, with channels for high pressure coolant. | Családnév | ETFR-CHP |

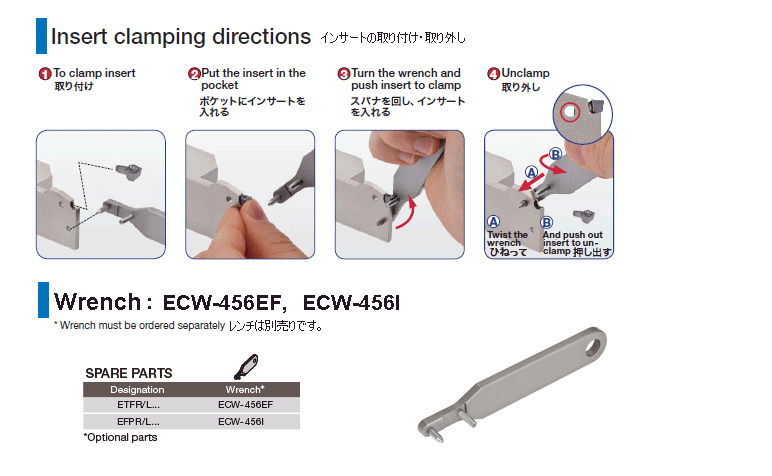

| Megjegyzések | Wrench (ECW**) for clamping insert should be ordered separately. For wrench (ECW**), click on "More Info". | BrandName | Tungaloy |
| COO | JAPAN |
Shipping Info
Csomag súlya
1.5388
Név
Face Groove/Turn Indexable Holders
Családnév
ETFR-CHP
BrandName
Tungaloy
